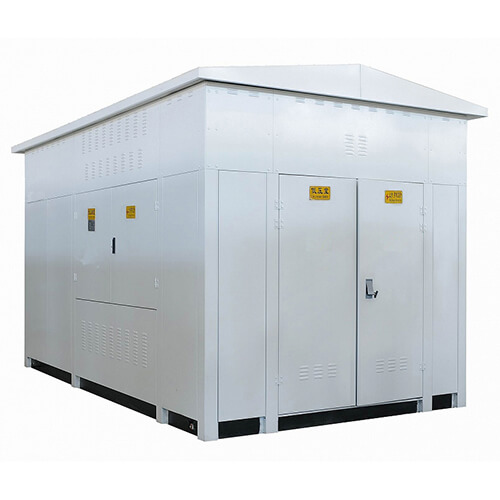

Containerised Substations

•The container adopts a special process, with anti-corrosion and anti-exposure capabilities, and can effectively resist the erosion of wind and sand
•Fire safety doors
•Easy to transport, Compact 20ft/40ft
•Container substation Safety and Reliability: Fully sealed and insulated for enhanced safety.
•Suitability rated lifting points
•High Reliability , The structure design is firm and reliable.
•Fan forced ventilated options available
•Natural ventilation obtained with suitable slats protected by anti-insect grids
•Containerised transformer custom options: liquid cooled or cast resin transformers

Main Specification
Rated Power	315kVA - 10000kVA
Rated voltage	1kV, 22kV, and 33kV
Weight	4T – 20T
Cooling method	ONAN /KNAN/ONAF/KNAF
Frequency	50/60HZ
Phase	3 Phase
Dimension (L\W\H)	- 20ft container: 20ft x 8ft x 13ft - 40ft container: 40ft x 8ft x 10ft
Standard	IEC ,AS, EN, IEEE/ANSI ,GOST
Altitude	≤1000m
Service life	25 years

Medium voltage containerised power substations for the solar, mining, tunnelling and construction industries.

Containers substation are offered as standard or bespoke packages to suit the client’s requirements. Containerised substations are perfect for customers who need portability and flexibility when it comes to using their substations. They are suitable for temporary supply or if supply is needed in different areas of the site.

container transformer stations
prefabricated container substation manufacturers

For each transformer are prepared and issued a test report, in accordance with IEC 60076. except for routine tests, we also offer type tests and specialized tests to meet all customer requirements. We make what matters work for our customers in a safe and reliable way.

Routine test

Measurement of winding resistance
Measurement of voltage ratio and check of phase displacement
Measurement of short-circuit impedance and load loss
Measurement of no-load loss and current
Separate-source AC withstand voltage test
Induced AC withstand voltage test
Partial discharge measurement

Type test

Lightning impulse test
Temperature-rise test

Special test

Partial discharge measurement
Measurement of sound level
Short-circuit test

Recommend related products

Step up Substations

Areas of application

Containerized substations for the renewable energy sector, our containerised substations seamlessly connect solar PV arrays and utility-scale battery energy storage systems (BESS) to the high-voltage grid.
