Nitrogen filled transformer

GNAN mining transformer

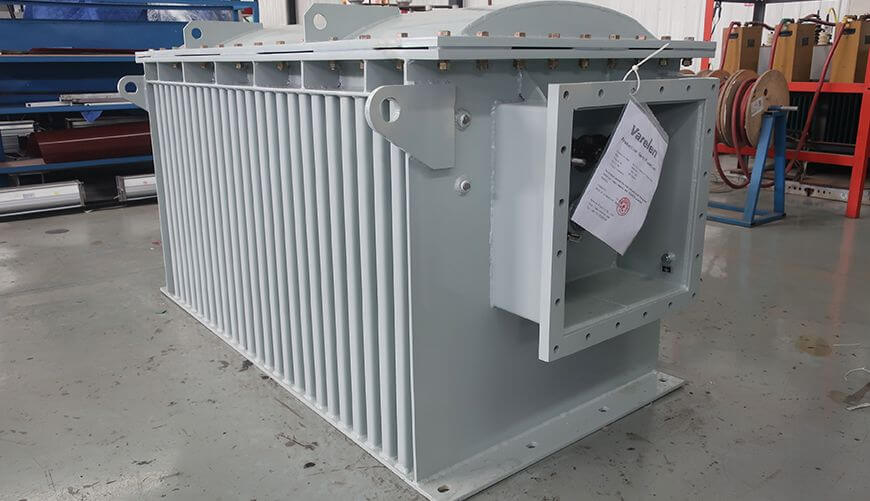

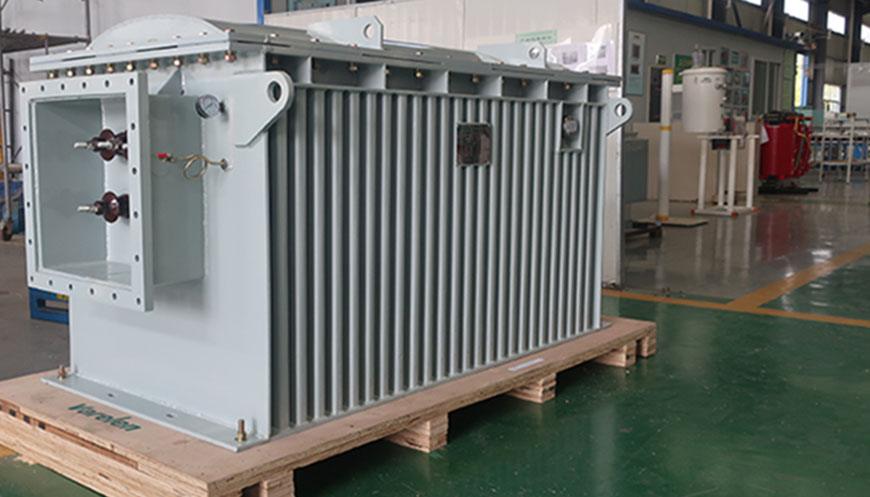

Nitrogen filled transformer

It is suitable for methane gas and coal dust and other explosive danger in the mine.



Technical specifications

1) Rated power: 500kva

2) Number of phases: 3

3) Insulation: VPI

4) Primary voltage: 1000V (tapping:+3*5%)

5) Secondary voltage: 1000V

6) Frequency: 50Hz

7) Vector group: Dyn11

8) Copper windings

9) GNAN (include shell)

10) Primary: Delta Connected Winding

11) Secondary: Star Connected Winding

Including the earth screen shield.
