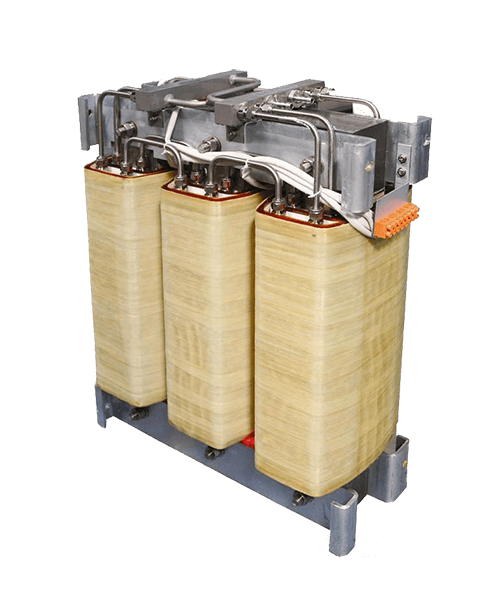

Liquid Cooled Chokes

  • •By use of liquid cooling, the temperatures in the components can be reduced greatly-ie less stress for the insulation materials and longer life.
  • •Reduced increase of the coolant temperature and lower required flow rates
  • •water cooled reactor for wind frequency converter
  • •three phase line choke is used for converter in wind application.  On the one hand the choke has to smooth the current and on the other hand the choke is part of the line side filter to meet the power quality.
  • • Maintenance-free (non-hygroscopic)

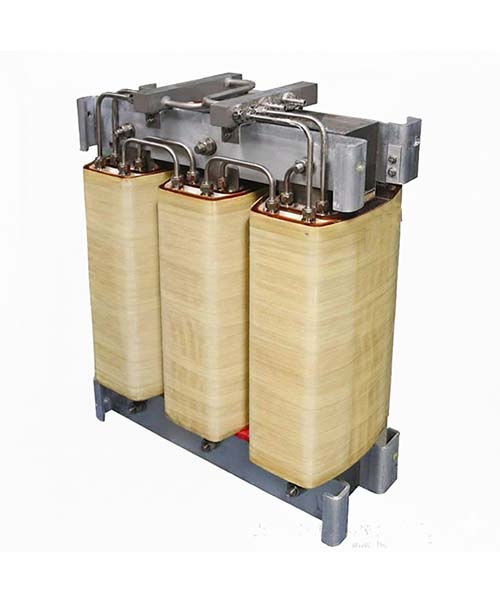

Liquid Cooled Chokes

Related product parameters

Main Specification
Rated voltage 380V/ 690V/ 1140V
Rated Current 5A- 1600A
Ambient Temperature 40℃
Frequency 50/ 60HZ
Phase Three Phase
dielectric withstanding voltage 3000VAC/ 50HZ/ 5mA/ 10S
Winding material Copper /Aluminum
Insulation Resistance ≥100ΜΩ
Insulation class H, C
Loise ≤65DB
Protection Enclosure IP00 to IP54
Application industrial, commercial and catering facilities, solar, public buildings and other indoor applications.

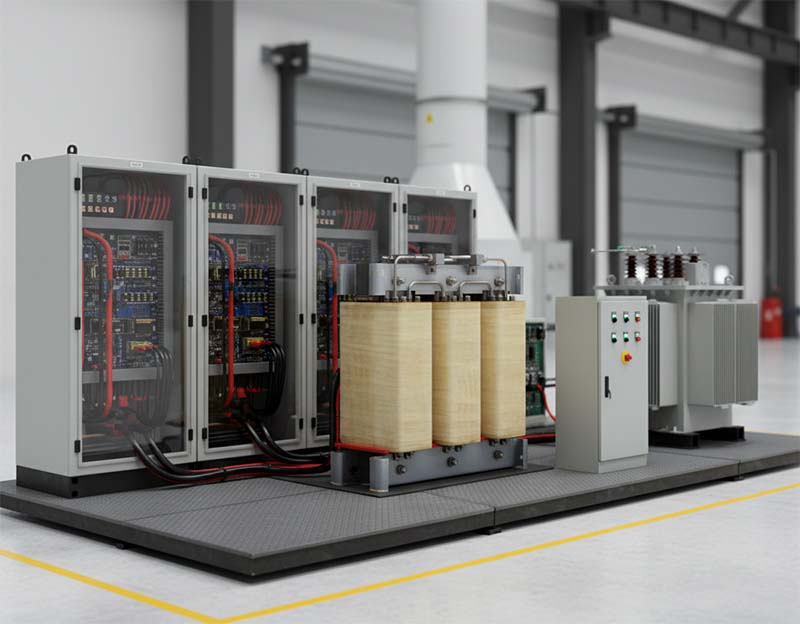

line choke for wind power plant

FACTORY TEST

For each transformer are prepared and issued a test report, in accordance with IEC 60076. except for routine tests, we also offer type tests and specialized tests to meet all customer requirements. We make what matters work for our customers in a safe and reliable way.

Routine test

  • Measurement of winding resistance
  • Measurement of voltage ratio and check of phase displacement
  • Measurement of short-circuit impedance and load loss
  • Measurement of no-load loss and current
  • Separate-source AC withstand voltage test
  • Induced AC withstand voltage test
  • Partial discharge measurement

Type test

  • Lightning impulse test
  • Temperature-rise test

Special test

  • Partial discharge measurement
  • Measurement of sound level
  • Short-circuit test
