Enhanced proection transformer is specially engineered with superior-grade materials to achieve high energy efficiency and reduce losses. transformer is insulated with a fire-safe dielectric fluid that is non-toxic to the environment . The self-extinguishing properties of the dielectric fluid greatly minimise the hazard level to nearly zero.
Enhanced Protected Transformers deliver advanced safety and reliability where traditional distribution transformers may not provide sufficient protection.
Engineered be installed closer to buildings, making them ideal for space-constrained urban environments and critical infrastructure our enhanced protection transformes feature pressure-resistant tanks with a greater ability to withstand internal faults without rupturing and Cargill FR-3 natural ester dielectric fluid or Midel 7131 synethic ester dielectric fluid, both with a high fire point (over 300°C) to significantly reduce fire and environmental risk, ensuring compliance with key safety standards like AS2067.
Reduced clearance requirements allow for flexible, space-efficient installation—even in urban precincts and confined sites like data centres. Available in standard and custom configurations, Varelen's enhanced protection transformer are tailored to meet demanding site, load, and compliance requirements with confidence.
Safer, smarter power in sensitive and high-stakes environments.

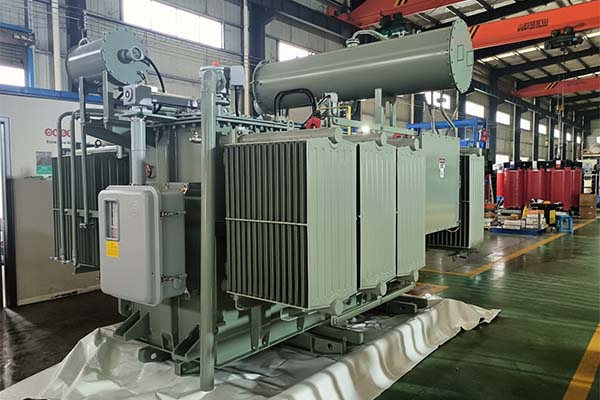

5000kVA 33kV enhanced protection transformer
Fire Safety – Less combustible, biodegradable dielectric fluid with a high fire point (over 300°C), designed to prevent or contain fires.
Environmental Protection – Engineered for readily bio-degradable dielectric fluids to prevent oil leaks and environmental contamination.
Tank Strength – Transformer tanks are engineered to withstand high internal pressures from internal faults without rupturing.
Low Maintenance – Designed to minimise servicing needs and reduce long-term operational costs.
Standards Compliance – Manufactured in line with Australian and international standards for assured quality and safety.
The conservator (oil expansion tank) design is a proven solution for maintaining oil quality and ensuring long-term transformer reliability.
The conservator accommodates oil expansion and contraction due to temperature variations, while isolating transformer oil from external contaminants.
Compared to sealed transformers, conservator designs are better suited for high-load and long-duration operation environments.
A complete protection system that enables:
➡ Early fault detection
➡ Rapid response
➡ Reduced risk of catastrophic failure
Temperature rise directly affects transformer lifespan and efficiency. This transformer is engineered with advanced thermal management.
Noise is a critical factor in urban installations and data centers.
