What is pad mounted substation?

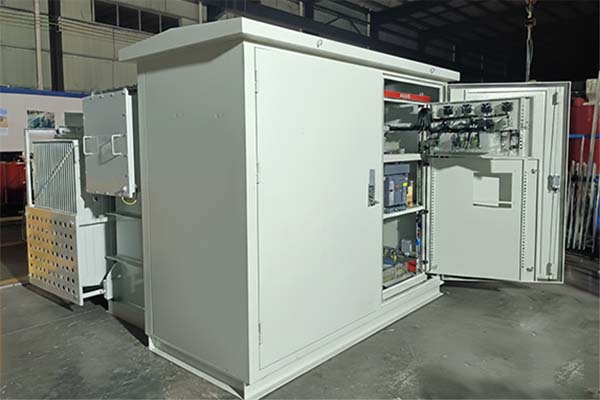

The American Box Type Substation is a prefabricated, fully enclosed outdoor power distribution solution designed for medium-voltage applications ranging from 11kV to 36kV. It integrates a transformer, high-voltage switchgear, and low-voltage control in a compact, sealed steel enclosure. Widely used in residential communities, industrial parks, commercial complexes, and temporary power stations, this substation offers high safety, weather resistance, and fast installation—making it ideal for modern power infrastructure projects.

Advantages of Using Pad-Mounted Substations in Power Distribution

1. With the transformer as the core component, it integrates high-voltage control and protection components such as high-voltage load switches and fuses into the transformer tank, creating a compact structure.
2. The Pad Mount Transformer is even smaller in size, with a volume that is roughly equivalent to a conventional oil-immersed transformer of the same capacity, occupying only about one-third of the volume of a European-style box transformer of the same capacity.
3. There are no heat dissipation issues, making the Pad Mount Transformer more capable of handling overload operations.
4. Simplified configuration of high and low-voltage units results in lower manufacturing costs for Pad Mount Transformers.
5. If the Pad Mount Transformer is equipped with our group's high-flash-point transformer, it becomes even more suitable for high-temperature regions in the summer.
6. Using a sealed tank design, the Pad Mount Transformer eliminates the need for an oil conservator, reducing the routine maintenance workload for the transformer.

Pad Mount Transformer Features:

• The transformer is oil-immersed.
• The product is divided into three parts: the transformer body, the high-voltage chamber, and the low-voltage chamber.
• Using a full-range protective fuse, The high-voltage side employs a terminal-type oil-immersed load switch with a protective fuse.
• Structural configurations include "T" shape and "L" shape, as well as "H" shape.
• Load switches and fuses are installed inside the transformer oil tank, utilizing the transformer's insulating fluid as both insulating and cooling medium, resulting in a compact overall structure with excellent heat dissipation performance.
• High-voltage side incoming connections utilize high-voltage bushings to facilitate external cable connections.
• Conventional products have direct outgoing connections on the low-voltage side, with low-voltage solutions customized according to user requirements.
• The enclosure is constructed from welded steel plates and undergoes anti-corrosion treatment, ensuring an aesthetically pleasing appearance.
• The high-voltage chamber contains operable components such as load switches, transformer tap changers, and protective fuses. The enclosure is equipped with oil temperature gauges, oil level indicators, pressure relief valves, drain valves, oil sampling valves, outgoing terminals, and, as per user specifications, low-voltage systems, and automated monitoring systems.

Technical Specification table：

Why Choose Varelen a Pad-Mounted Transformer Substation?

Compact Footprint

The transformer serves as the core component while high-voltage protection devices are integrated directly into the transformer tank.

Compared with conventional European compact substations, a pad-mounted substation occupies approximately one-third of the installation space while providing equivalent power capacity.

Enhanced Overload Capability

Load switches and fuse assemblies are immersed in transformer oil, allowing efficient heat dissipation and improved thermal performance.

This design enables better overload handling during peak demand periods.

Reduced Maintenance

The hermetically sealed tank eliminates the need for a conservator tank and minimizes oil exposure to the atmosphere.

Benefits include:

• Reduced maintenance costs
• Longer insulation life
• Improved reliability
• Lower risk of oil contamination

Optimized Lifecycle Cost

The simplified high-voltage and low-voltage configuration reduces manufacturing complexity and installation expenses.

This makes pad-mounted substations one of the most cost-effective medium-voltage distribution solutions available.

Suitable for Harsh Environments

When equipped with biodegradable ester fluid or high-flash-point insulating liquid, the substation becomes ideal for:

• High-temperature regions
• Desert environments
• Renewable energy projects
• Fire-sensitive locations

Commitment to Safety and Sustainability

Varelen continuously invests in transformer innovation, energy efficiency, and environmentally responsible insulation technologies to help customers achieve reliable and sustainable power distribution.

Whether for solar farms, BESS projects, industrial plants, or modern data centers, Varelen provides safe, efficient, and customized pad-mounted transformer solutions tailored to your application.
